Radial aluminum electrolytic capacitor with 10µF capacitance and 20% tolerance. Features a 50V DC rated voltage, 50mA ripple current, and 4.5µA leakage current. Constructed with aluminum dielectric, it operates from -40°C to 85°C and offers a 2000-hour life. Through-hole mounting with a 2.5mm lead pitch and 0.5mm lead diameter.
PackageRadial
Voltage50V
Capacitance10uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECE-A1HN100U technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 11.2mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 4.5uA |
| Length | 11.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 50mA |
| Ripple Current (AC) | 50mA |
| RoHS Compliant | Yes |
| Series | SU |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1HN100U Datasheet
Download the complete datasheet for Panasonic ECE-A1HN100U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

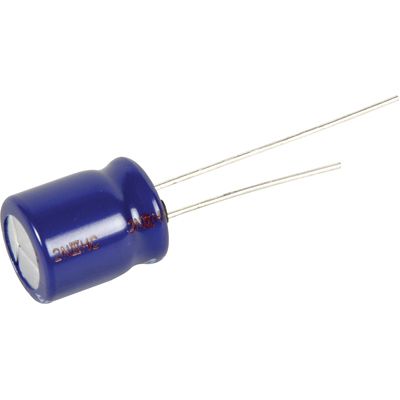

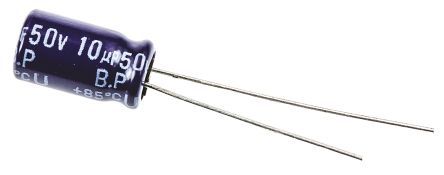

Product Images
