100 µF, 50V radial aluminum electrolytic capacitor with ±20% tolerance. Features 2000 hours of life at 85°C, 250mA ripple current, and 4.5µA leakage current. This through-hole component has a 10mm diameter, 20mm height, 5mm lead pitch, and 0.6mm lead diameter. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Storage20mm
Capacitance100uF
Quick Jump:
Technical Specifications
Panasonic ECE-A1HN101U technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.15%
Height
20mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
4.5uA
Length
20mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
250mA
Ripple Current (AC)
250mA
RoHS Compliant
Yes
Series
SU
Size
20mm
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECE-A1HN101U Datasheet
Download the complete datasheet for Panasonic ECE-A1HN101U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

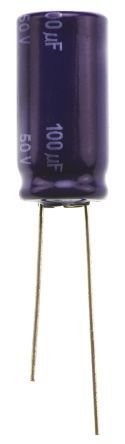

Product Images
