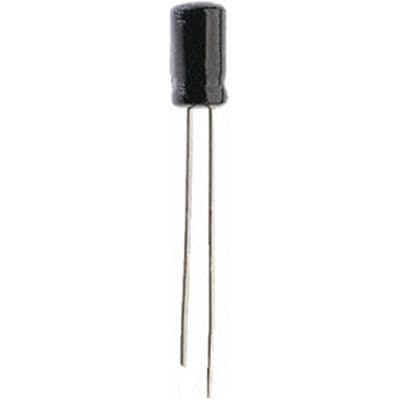

Aluminum electrolytic capacitor with 22µF capacitance and 35V DC rated voltage. Features a 20% tolerance, 60mA ripple current, and 1000-hour life at 85°C. Radial package measures 6.3mm diameter by 5mm height with a 2.5mm lead pitch. Through-hole mounting with lead-free termination.
PackageRadial
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic ECE-A1VKS220 technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dissipation Factor
0.12%
Height
5mm
Lead Diameter
0.45mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
3uA
Length
5mm
Life (Hours)
1000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
60mA
RoHS Compliant
Yes
Series
KS
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECE-A1VKS220 Datasheet
Download the complete datasheet for Panasonic ECE-A1VKS220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
