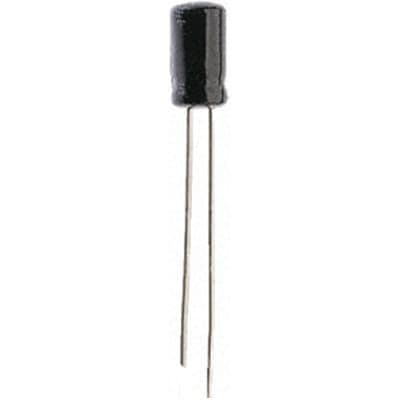

Aluminum electrolytic capacitor, 33µF capacitance, 35V voltage rating, and 20% tolerance. Features a radial package with 2.5mm lead pitch, 8mm diameter, and 5mm height. Operates within a temperature range of -40°C to 85°C, offering 1000 hours of life at 85°C and a ripple current of 65mA. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage35V
Capacitance33uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic ECE-A1VKS330 technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Height
5mm
Height - Seated (Max)
0.197inch
Lead Diameter
0.45mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
3uA
Length
5mm
Life (Hours)
1000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
65mA
Ripple Current (AC)
65mA
RoHS Compliant
Yes
Series
KS
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
