Radial aluminum electrolytic capacitor with 4.7uF capacitance and 20% tolerance. Features a 35V DC rated voltage, 22mA ripple current, and 3uA leakage current. Operating temperature range is -40°C to 85°C with a 1000-hour life expectancy. Through-hole mounting with a 1.5mm lead pitch and 0.45mm lead diameter.
PackageRadial
Voltage35V
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic ECE-A1VKS4R7 technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Dissipation Factor | 0.12% |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Length | 5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 22mA |
| RoHS Compliant | Yes |
| Series | KS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1VKS4R7 Datasheet
Download the complete datasheet for Panasonic ECE-A1VKS4R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

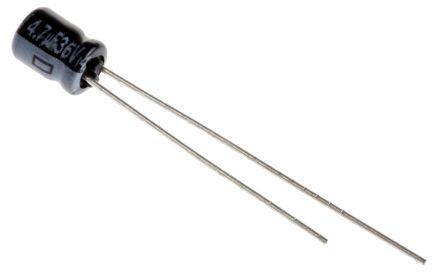

Product Images
