Surface mount film capacitor with 6.8nF capacitance and 2% tolerance. Features a 16V DC voltage rating and a 0805 (2012 metric) case size. Constructed with a PPS dielectric for operation between -55°C and 125°C, offering a dissipation factor of 0.6%. Packaged in tape and reel for automated assembly.
Package0805
Voltage16V
Capacitance6.8nF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic ECH-U1C682GX5 technical specifications.
General
Capacitance
6.8nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
PPS
Dielectric Material
Polyphenylene
Dissipation Factor
0.6%
Height
0.9mm
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECHU(X)
Termination
SMD/SMT
Tolerance
2%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ECH-U1C682GX5 Datasheet
Download the complete datasheet for Panasonic ECH-U1C682GX5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

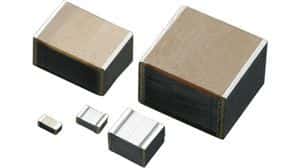

Product Images
