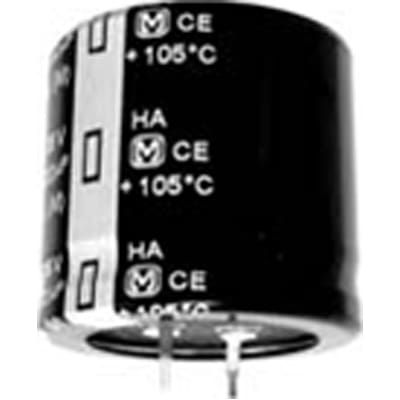

Aluminum electrolytic capacitor with 47mF capacitance and 16V DC voltage rating. Features 35mm diameter, 45mm height, and 10mm lead pitch for through-hole mounting. Offers 3000 hours of life at 105°C, 5.5A ripple current, and 20mΩ ESR at 120Hz. Termination type is snap-in.
PackageRadial
Voltage16V
Capacitance47mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic ECO-S1CA473EA technical specifications.
General
| Capacitance | 47mF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 45% |
| ESR (Equivalent Series Resistance) | 20mR |
| Height | 45mm |
| Height - Seated (Max) | 1.85inch |
| Lead Diameter | 0.8mm |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 45mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 5.5A |
| Ripple Current (AC) | 5.5A |
| RoHS Compliant | Yes |
| Series | TS-HA |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECO-S1CA473EA Datasheet
Download the complete datasheet for Panasonic ECO-S1CA473EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
