63V radial aluminum electrolytic capacitor with 4.7mF capacitance and 20% tolerance. Features a 35mm diameter, 30mm height, and 10mm lead pitch, with snap-in termination for through-hole mounting. Offers 3000 hours of life at 105°C, 3A ripple current, and 63mΩ ESR at 120Hz. RoHS compliant.
PackageRadial
Capacitance4.7mF
Resistance0.063R
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic ECO-S1JA472EA technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dissipation Factor | 20% |
| ESR (Equivalent Series Resistance) | 63mR |
| Height | 30mm |
| Lead Diameter | 0.8mm |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 0.063R |
| Ripple Current | 3A |
| RoHS Compliant | Yes |
| Series | TS-HA |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECO-S1JA472EA Datasheet
Download the complete datasheet for Panasonic ECO-S1JA472EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

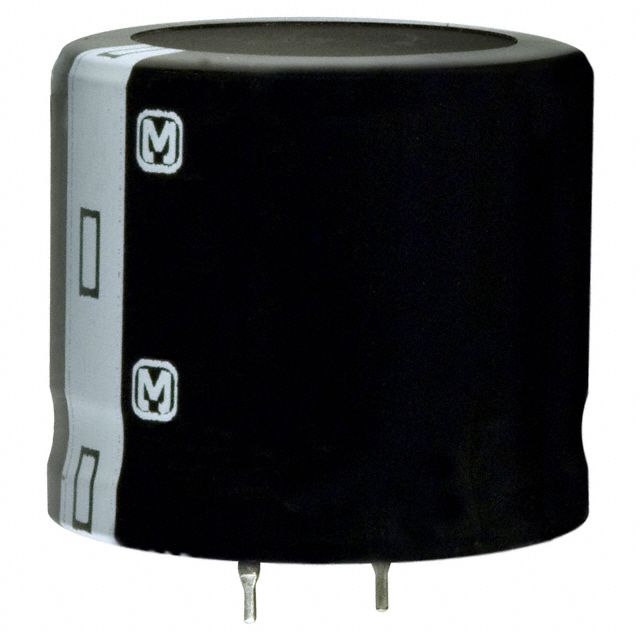

Product Images
