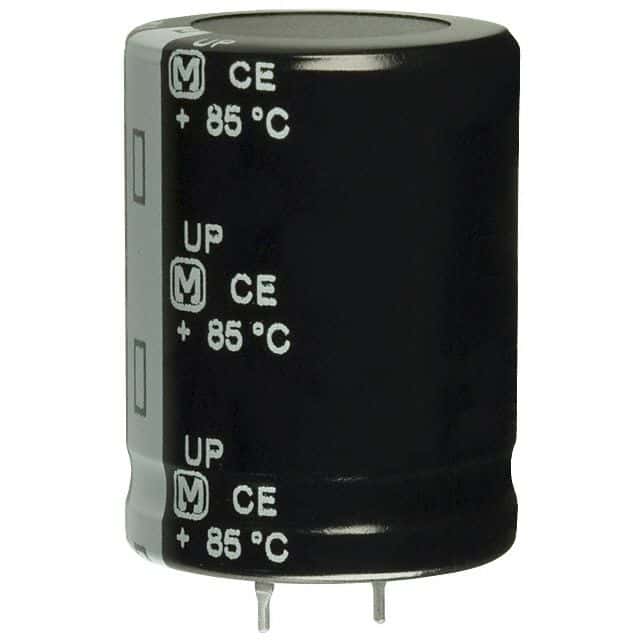

Radial aluminum electrolytic capacitor with 4.7mF capacitance and 80V DC rated voltage. Features 20% tolerance, 63mΩ ESR at 120Hz, and a ripple current rating of 4.09A. Designed for through-hole mounting with snap-in termination, this component operates from -40°C to 85°C with a 3000-hour life rating. Dimensions include a 30mm diameter and 40mm height.
Sign in to ask questions about the Panasonic ECO-S1KP472DA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ECO-S1KP472DA technical specifications.
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dissipation Factor | 20% |
| ESR (Equivalent Series Resistance) | 63mR |
| Height | 40mm |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 0.063R |
| Ripple Current | 4.09A |
| RoHS Compliant | Yes |
| Series | TS-UP |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 80V |
| DC Rated Voltage | 80V |
| RoHS | Compliant |
