General purpose aluminum electrolytic capacitor with 1mF capacitance and 200V DC rated voltage. Features a 30mm diameter, 45mm height, and 10mm lead pitch for through-hole mounting. Offers a 3000-hour lifetime at 105°C, 2.2A ripple current, and 199mΩ ESR at 120Hz. RoHS compliant with a 20% tolerance.
PackageRadial
Voltage200V
Capacitance1mF
Voltage Rating200V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECO-S2DA102DA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECO-S2DA102DA technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 199mR |
| Height | 45mm |
| Height - Seated (Max) | 1.85inch |
| Lead Diameter | 0.8mm |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 45mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.2A |
| RoHS Compliant | Yes |
| Series | TS-HA |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECO-S2DA102DA Datasheet
Download the complete datasheet for Panasonic ECO-S2DA102DA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

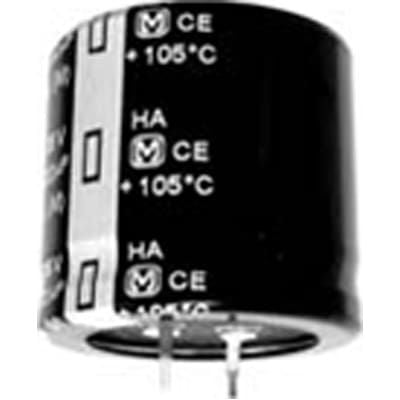

Product Images
