Radial aluminum electrolytic capacitor with 100uF capacitance and 400V voltage rating. Features a 22mm diameter, 35mm height, and 10mm lead pitch for through-hole mounting. Offers 1.326 Ohm ESR at 120Hz, 690mA ripple current, and a dissipation factor of 15%. Operates from -25°C to 105°C with a 3000-hour life rating.
PackageRadial
Voltage400V
Capacitance100uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic ECO-S2GA101BA technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 1.326R |
| Height | 35mm |
| Height - Seated (Max) | 1.457inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 35mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 690mA |
| Ripple Current (AC) | 690mA |
| RoHS Compliant | Yes |
| Series | TS-HA |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECO-S2GA101BA Datasheet
Download the complete datasheet for Panasonic ECO-S2GA101BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

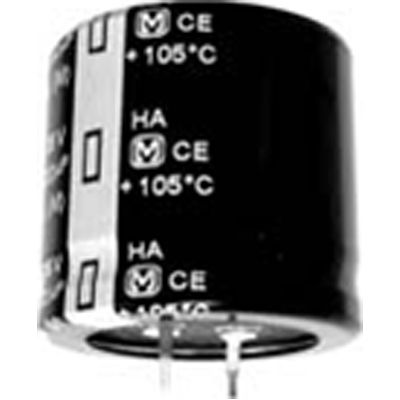

Product Images
