Technical Specifications
Panasonic ECQ-E1274JF technical specifications.
General
| Capacitance | 270nF |
| Package/Case | Radial |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Lead Pitch | 5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | ECQ-E(F) |
| Termination | Radial |
| Tolerance | 5% |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E1274JF Datasheet
Download the complete datasheet for Panasonic ECQ-E1274JF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

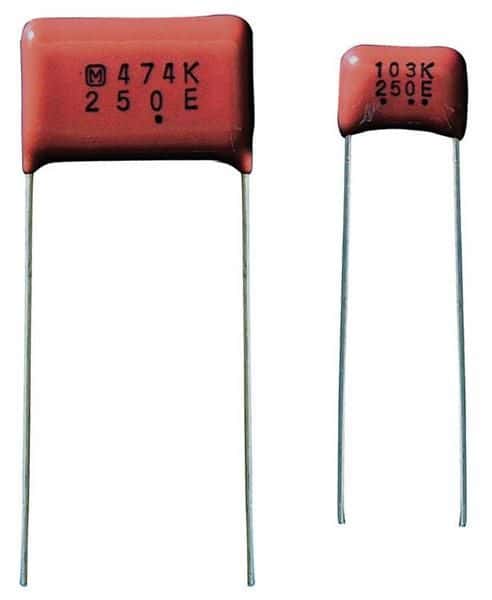

Product Images
