The ECQ-E1474KF9 is a film capacitor from Panasonic with a capacitance of 470nF and a DC rated voltage of 100V. It has a tolerance of 10% and is available in a radial package with a lead pitch of 15mm. The capacitor is designed for through hole mounting and has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C.
PackageRadial
Capacitance470nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ECQ-E1474KF9 technical specifications.
General
| Capacitance | 470nF |
| Package/Case | Radial |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 0.492inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 0.728inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Series | ECQ-E(F) |
| Termination | Radial |
| Tolerance | 10% |
| DC Rated Voltage | 100V |
| Width | 0.209inch |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E1474KF9 Datasheet
Download the complete datasheet for Panasonic ECQ-E1474KF9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

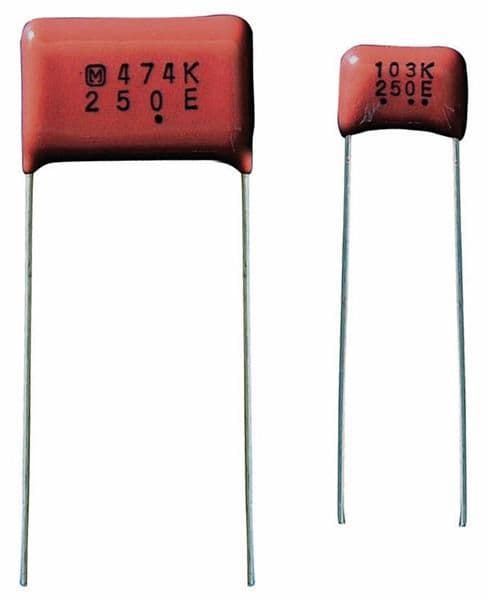

Product Images
