Radial film capacitor with 10µF capacitance and 250V voltage rating. Features PET dielectric, 10% tolerance, and a maximum operating temperature of 105°C. Dimensions are 31mm (L) x 15.9mm (W) x 25.8mm (H) with a 27.5mm lead pitch. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Capacitance10uF
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ECQ-E2106KF technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 15.9mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 25.8mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 20mm |
| Lead Pitch | 27.5mm |
| Lead/Base Style | Straight |
| Length | 31mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECQ-E(F) |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 15.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-E2106KF Datasheet
Download the complete datasheet for Panasonic ECQ-E2106KF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

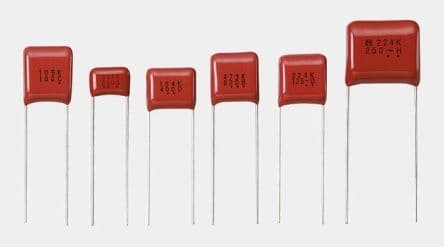

Product Images
