Radial film capacitor with 1.5µF capacitance and 10% tolerance, rated for 250VDC. Features a polyester dielectric and through-hole mounting for PCB applications. Operating temperature range is -40°C to 105°C. Dimensions include 18.5mm length, 9mm width, 9mm depth, and 16.8mm height, with 0.8mm lead diameter and 15mm lead pitch. RoHS compliant and lead-free.
PackageRadial
Voltage250V
Capacitance1.5uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic ECQ-E2155KF technical specifications.
General
Capacitance
1.5uF
Package/Case
Radial
Construction
RADIAL
Depth
9mm
Dielectric
PET
Dielectric Material
Polyester
Height
16.8mm
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Length
20mm
Lead Pitch
15mm
Lead/Base Style
Straight
Length
18.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECQ-E(F)
Termination
Radial
Tolerance
10%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ECQ-E2155KF Datasheet
Download the complete datasheet for Panasonic ECQ-E2155KF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

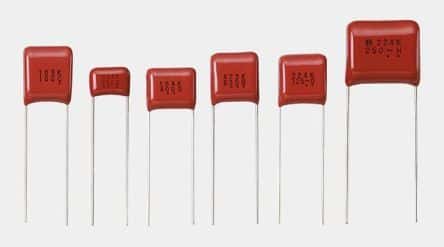

Product Images
