Radial film capacitor with 1.8µF capacitance and 20% tolerance, rated for 275VAC. Features a polyester dielectric and through-hole mounting with straight leads on a 27.5mm pitch. Operating temperature range is -40°C to 85°C.
PackageRadial
Capacitance1.8uF
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ECQ-U2A185ML technical specifications.
General
| Capacitance | 1.8uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 19mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 19mm |
| Height - Seated (Max) | 1.181inch |
| Lead Diameter | 0.8mm |
| Lead Length | 20mm |
| Lead Pitch | 27.5mm |
| Lead/Base Style | Straight |
| Length | 30.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | ECQ-UL |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 909mV |
| Width | 29.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-U2A185ML Datasheet
Download the complete datasheet for Panasonic ECQ-U2A185ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

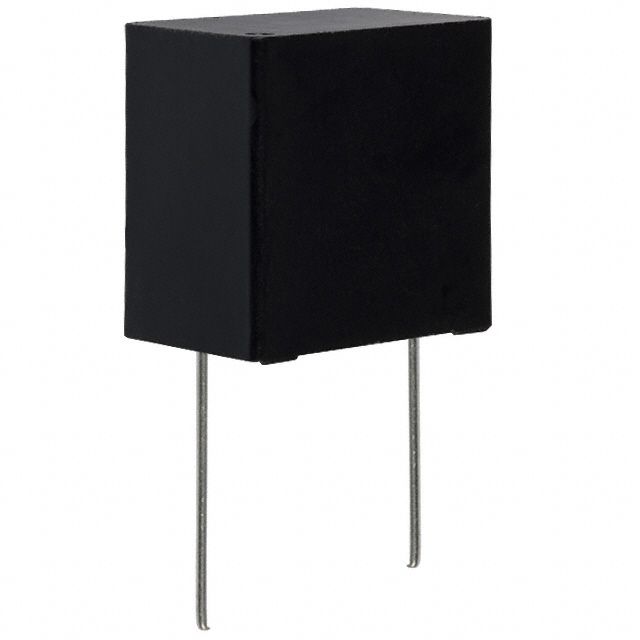

Product Images
