Radial film capacitor with 220nF capacitance and 20% tolerance. Features a 275VAC voltage rating and PET dielectric construction. Designed for through-hole mounting with straight radial leads on a 15mm pitch. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage250V
Capacitance220nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ECQ-U2A224ML technical specifications.
General
Capacitance
220nF
Package/Case
Radial
Construction
RADIAL
Depth
8mm
Dielectric
PET
Dielectric Material
Polyester
Height
8mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Length
20mm
Lead Pitch
15mm
Lead/Base Style
Straight
Length
17.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1200
Packaging
Bulk
Radiation Hardening
No
Ratings
X2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECQ-UL
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating (AC)
275V
DC Rated Voltage
909mV
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ECQ-U2A224ML Datasheet
Download the complete datasheet for Panasonic ECQ-U2A224ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

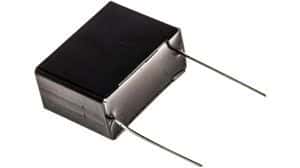

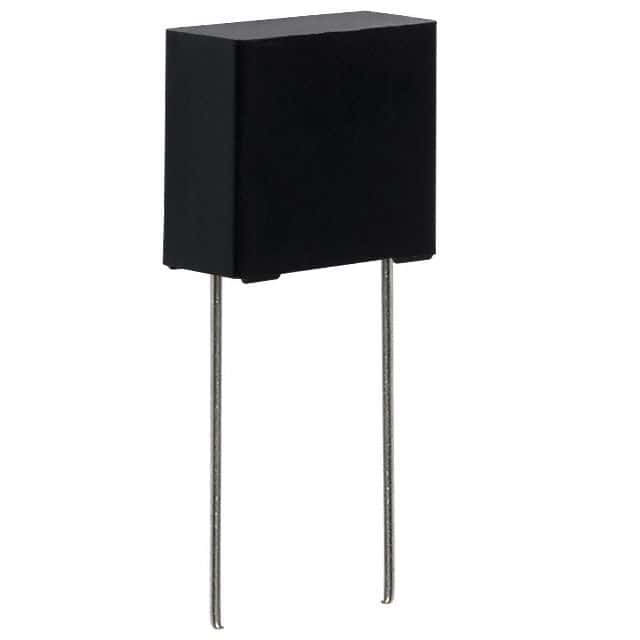

Product Images
