Radial film capacitor with 680nF capacitance and 20% tolerance. Features a 275VAC voltage rating and polyester dielectric. Designed for through-hole PCB mounting with a 22.5mm lead pitch. Operates across a -40°C to 100°C temperature range. RoHS compliant.
PackageRadial
Capacitance680nF
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ECQ-U2A684ML technical specifications.
General
Capacitance
680nF
Package/Case
Radial
Construction
RADIAL
Depth
10.5mm
Dielectric
PET
Dielectric Material
Polyester
Height
10.5mm
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Length
20mm
Lead Pitch
22.5mm
Lead/Base Style
Straight
Length
25.5mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Ratings
X2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECQ-UL
Termination
Radial
Tolerance
20%
Voltage Rating (AC)
275V
DC Rated Voltage
909mV
Width
19.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ECQ-U2A684ML Datasheet
Download the complete datasheet for Panasonic ECQ-U2A684ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

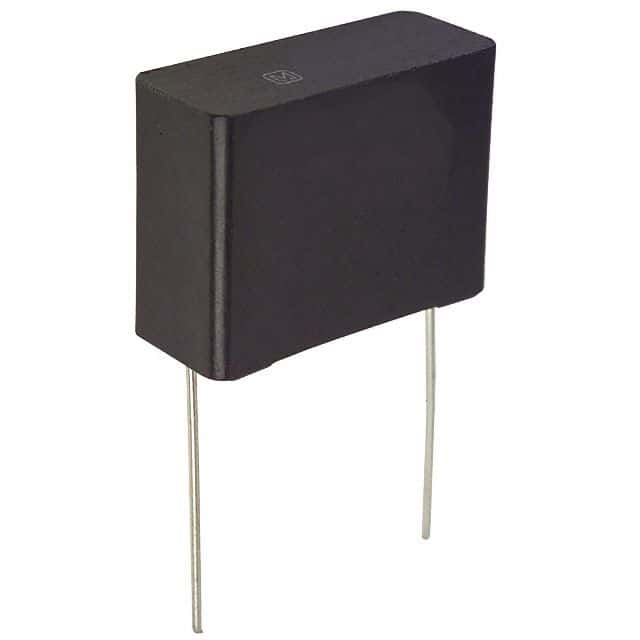

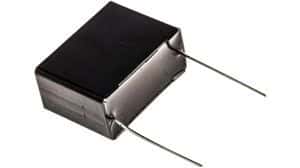

Product Images
