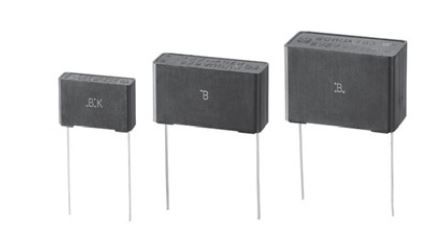

Radial film capacitor with 100nF capacitance and 10% tolerance. Features a PP dielectric and a 275VAC voltage rating. Designed for through-hole PCB mounting with a 15mm lead pitch and 0.6mm lead diameter. Operates across a temperature range of -40°C to 110°C. RoHS compliant.
Sign in to ask questions about the Panasonic ECQ-UAAF104K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ECQ-UAAF104K technical specifications.
| Capacitance | 100nF |
| Package/Case | Radial |
| Depth | 5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 5mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 15mm |
| Lead/Base Style | Straight |
| Length | 17.5mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | X2 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ECQUA |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 275V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 275V |
| Width | 12mm |
| RoHS | Compliant |
