Radial film capacitor with 47nF capacitance and 5% tolerance. Features a PET dielectric for reliable performance, rated at 50VDC. Designed for through-hole PCB mounting with a 5mm lead pitch and straight leads. Operates across a wide temperature range from -40°C to 105°C.
PackageRadial
Voltage50V
Capacitance47nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECQ-V1H473JL technical specifications.
General
| Capacitance | 47nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 3.2mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 5mm |
| Lead Diameter | 0.5mm |
| Lead Length | 20mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 7.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECQ-V |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECQ-V1H473JL Datasheet
Download the complete datasheet for Panasonic ECQ-V1H473JL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

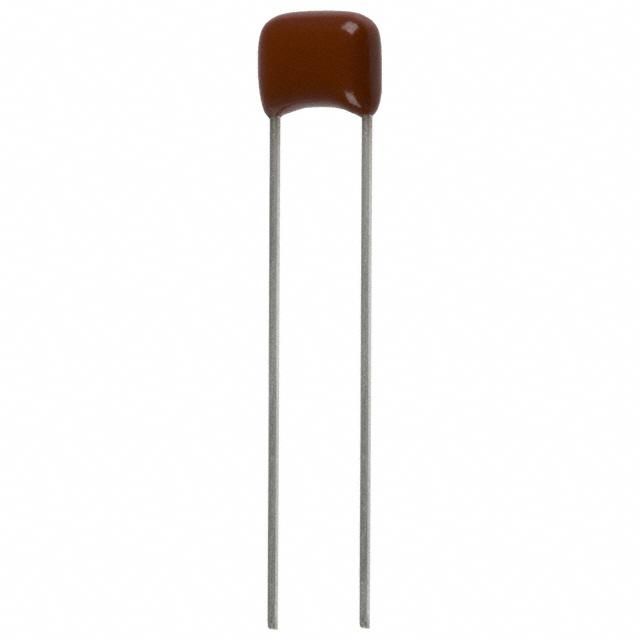

Product Images
