Radial film capacitor with 1.5µF capacitance and 250VDC voltage rating. Features 5% tolerance and polypropylene (PP) dielectric. Designed for through-hole PCB mounting with a 15mm lead pitch and 0.8mm lead diameter. Operating temperature range from -40°C to 105°C.
PackageRadial
Voltage250V
Capacitance1.5uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic ECW-F2155JA technical specifications.
General
| Capacitance | 1.5uF |
| Package/Case | Radial |
| Depth | 10.5mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 15.6mm |
| Height - Seated (Max) | 0.673inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Lead/Base Style | Straight |
| Length | 18.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECWF(A) |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 10.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECW-F2155JA Datasheet
Download the complete datasheet for Panasonic ECW-F2155JA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

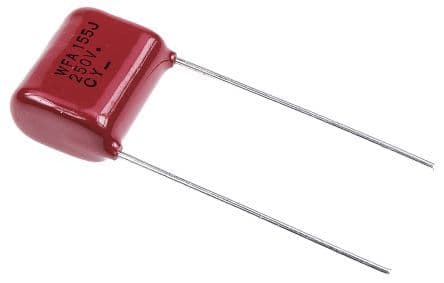

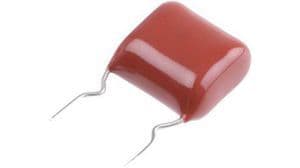

Product Images
