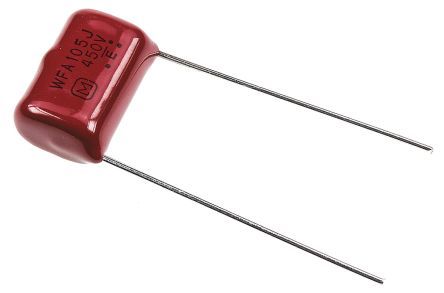

Radial film capacitor with 1µF capacitance and 450V DC rated voltage. Features a 5% tolerance and polypropylene dielectric. Operates from -40°C to 105°C, with a 15mm lead pitch and 0.8mm lead diameter. Dimensions are 18.1mm (L) x 9.3mm (W) x 12.6mm (H). RoHS compliant and available in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ECW-F2W105JA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ECW-F2W105JA technical specifications.
| Capacitance | 1uF |
| Package/Case | Radial |
| Depth | 9.3mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 12.6mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 15mm |
| Lead/Base Style | Straight |
| Length | 18.1mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECWF(A) |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| Width | 9.3mm |
| RoHS | Compliant |
