Radial film capacitor with 150nF capacitance and 5% tolerance, rated for 450VDC. Features a Polypropylene (PP) dielectric and a 10mm lead pitch. Designed for through-hole PCB mounting, operating from -40°C to 105°C. RoHS compliant with lead-free termination.
PackageRadial
Voltage450V
Capacitance150nF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic ECW-F2W154JAQ technical specifications.
General
| Capacitance | 150nF |
| Package/Case | Radial |
| Depth | 5.7mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 14.9mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 13mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECWF(A) |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| Width | 5.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECW-F2W154JAQ Datasheet
Download the complete datasheet for Panasonic ECW-F2W154JAQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

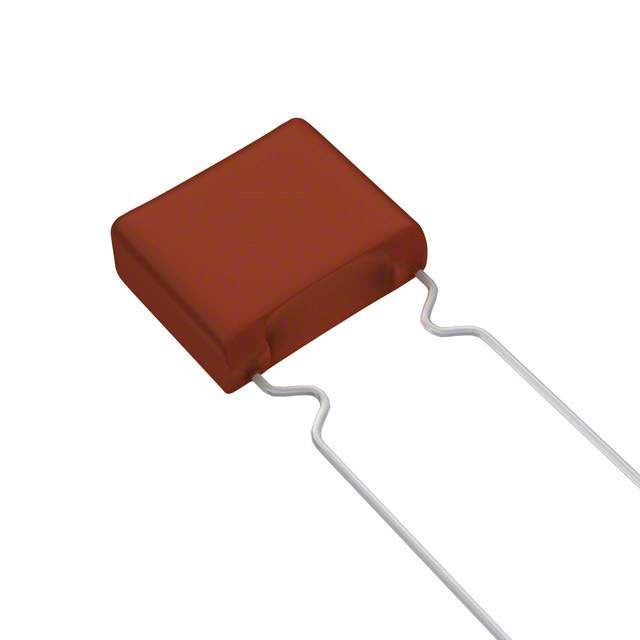

Product Images
