680nF, 5% tolerance radial film capacitor for through-hole PCB mounting. Features a 630V DC rating, PP dielectric, and a maximum operating temperature of 105°C. Dimensions include a 25mm lead pitch, 0.8mm lead diameter, and a body measuring 28mm in length, 12.7mm in width, and 19.3mm in height. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage630V
Capacitance680nF
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ECW-F6684JL technical specifications.
General
| Capacitance | 680nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 12.7mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 19.3mm |
| Height - Seated (Max) | 0.819inch |
| Lead Diameter | 0.8mm |
| Lead Length | 25mm |
| Lead Pitch | 25mm |
| Lead/Base Style | Straight |
| Length | 28mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | ECW-F(L) |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage | 630V |
| DC Rated Voltage | 630V |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECW-F6684JL Datasheet
Download the complete datasheet for Panasonic ECW-F6684JL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

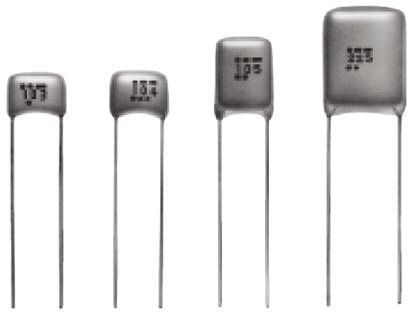

Product Images
