Surface mount film capacitor with 100nF capacitance and 5% tolerance. Features a 250V voltage rating, polyester dielectric, and a 2420 (6050 metric) case code. Operating temperature range is -55°C to 85°C. Packaged in tape and reel for efficient assembly.
Package2420
Voltage250V
Capacitance100nF
Voltage Rating250V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECW-U2104V16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECW-U2104V16 technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 2420 |
| Case Code (Metric) | 6050 |
| Package/Case | 2420 |
| Construction | Flat |
| Depth | 5mm |
| Dielectric Material | Polyester |
| Height | 3.8mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECWU(V16) |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECW-U2104V16 Datasheet
Download the complete datasheet for Panasonic ECW-U2104V16 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

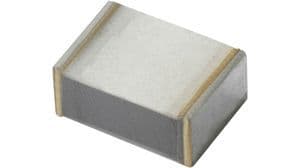

Product Images
