Radial aluminum electrolytic capacitor with 1.5µF capacitance and 50V DC rated voltage. Features a 4mm diameter, 7mm height, and 1.5mm lead pitch for through-hole mounting. Operates within a -55°C to 105°C temperature range, offering 1000 hours of life at rated conditions. Includes 3µA leakage current and 16mA ripple current, with 20% capacitance tolerance. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage50V
Capacitance1.5uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEA-GA1H1R5 technical specifications.
General
| Capacitance | 1.5uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Height | 7mm |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 16mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEA-GA1H1R5 Datasheet
Download the complete datasheet for Panasonic EEA-GA1H1R5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

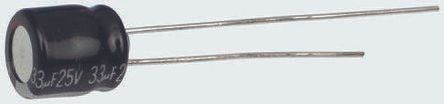

Product Images
