Aluminum electrolytic capacitor with 4.7µF capacitance and 50V voltage rating. Features a 20% tolerance, 1000-hour life at 105°C, and 26mA ripple current. Radial package with 5mm lead pitch, 4mm diameter, and 7mm height. Through-hole mounting for PCB applications, RoHS compliant.
PackageRadial
Voltage50V
Capacitance4.7uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEA-GA1H4R7B technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Features | General Purpose |
| Height | 7mm |
| Height - Seated (Max) | 0.276inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 26mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEA-GA1H4R7B Datasheet
Download the complete datasheet for Panasonic EEA-GA1H4R7B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

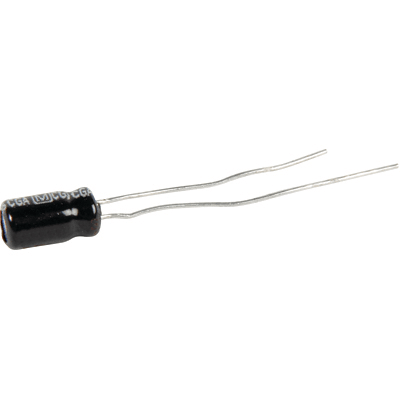

Product Images
