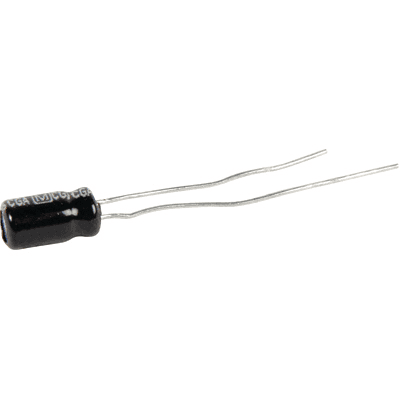

Radial aluminum electrolytic capacitor with 100nF capacitance and 20% tolerance, rated for 50V DC. Features a 1.5mm lead pitch, 0.45mm lead diameter, and straight lead style for through-hole PCB mounting. Operates across a wide temperature range from -55°C to 105°C, with a leakage current of 3uA and ripple current of 1.1mA. Constructed for 1000 hours of life at rated voltage and temperature.
Sign in to ask questions about the Panasonic EEA-GA1HR10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEA-GA1HR10 technical specifications.
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Height | 7mm |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.1mA |
| Ripple Current (AC) | 1.1mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
