Radial aluminum electrolytic capacitor with 470nF capacitance and 50V DC rated voltage. Features a 1000-hour lifetime at 105°C maximum operating temperature, with a 20% tolerance and 5mA ripple current. This through-hole component has a 4mm diameter, 7mm height, 1.5mm lead pitch, and 0.45mm lead diameter. Designed for PCB mounting, it operates from -55°C to 105°C and is RoHS compliant.
PackageRadial
Voltage50V
Capacitance470nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEA-GA1HR47 technical specifications.
General
| Capacitance | 470nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Height | 7mm |
| Lead Diameter | 0.45mm |
| Lead Pitch | 1.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 5mA |
| Ripple Current (AC) | 5mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEA-GA1HR47 Datasheet
Download the complete datasheet for Panasonic EEA-GA1HR47 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

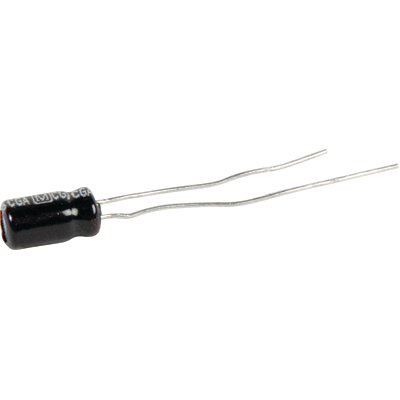

Product Images
