Radial aluminum electrolytic capacitor, 10µF capacitance, 35V DC rated voltage, and 20% tolerance. Features a 5mm diameter, 7mm height, and 2mm lead pitch for through-hole PCB mounting. Offers a ripple current of 35mA, leakage current of 3.5µA, and a life expectancy of 1000 hours at 105°C. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEA-GA1V100 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Height | 7mm |
| Height - Seated (Max) | 0.276inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Lead/Base Style | Straight |
| Leakage Current | 3.5uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 35mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEA-GA1V100 Datasheet
Download the complete datasheet for Panasonic EEA-GA1V100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

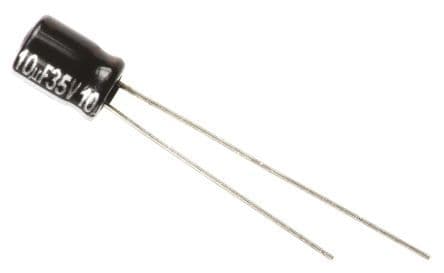

Product Images
