Radial aluminum electrolytic capacitor with 15µF capacitance and 35V DC rated voltage. Features a 2.5mm lead pitch, 6.3mm diameter, and 7mm height, suitable for through-hole mounting. Operates across a wide temperature range from -55°C to 105°C with a 1000-hour life expectancy. Offers 20% capacitance tolerance, 5.3µA leakage current, and 50mA ripple current.
PackageRadial
Voltage35V
Capacitance15uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEA-GA1V150 technical specifications.
General
| Capacitance | 15uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 13% |
| Height | 7mm |
| Lead Pitch | 2.5mm |
| Leakage Current | 5.3uA |
| Length | 7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 50mA |
| Ripple Current (AC) | 35mA |
| RoHS Compliant | Yes |
| Series | GA |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEA-GA1V150 Datasheet
Download the complete datasheet for Panasonic EEA-GA1V150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

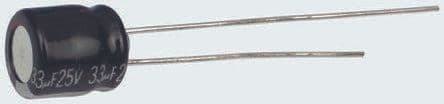

Product Images
