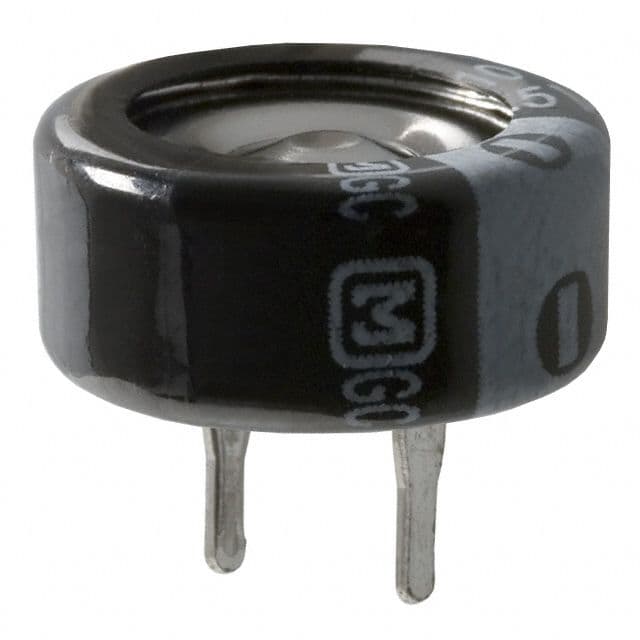

Radial aluminum electrolytic capacitor, 100mF capacitance, 5.5V DC rated voltage, with a tolerance of -20% to +80%. Features a cylindrical construction with a 13.5mm body diameter and 7.5mm height. Through-hole mounting with 0.8mm lead diameter and 5mm lead pitch. Operating temperature range from -25°C to 70°C, with an ESR of 75 Ohms and a life of 1000 hours. RoHS compliant.
Sign in to ask questions about the Panasonic EEC-F5R5U104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEC-F5R5U104 technical specifications.
| Body Diameter | 13.5mm |
| Capacitance | 100mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 7.5mm |
| Diameter | 13.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 75R |
| Height | 7.5mm |
| Height - Seated (Max) | 0.295inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 6mm |
| Lead Pitch | 5mm |
| Length | 7.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NF |
| Termination | Through Hole |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Width | 13.5mm |
| RoHS | Compliant |
