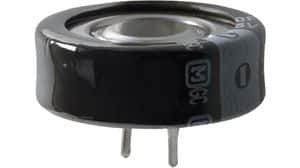

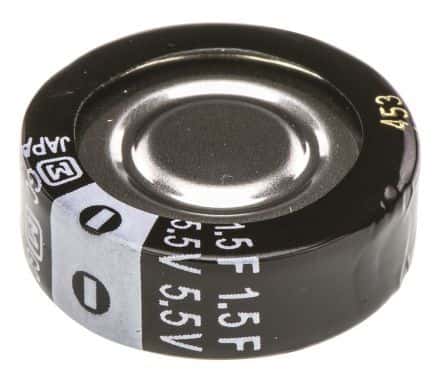

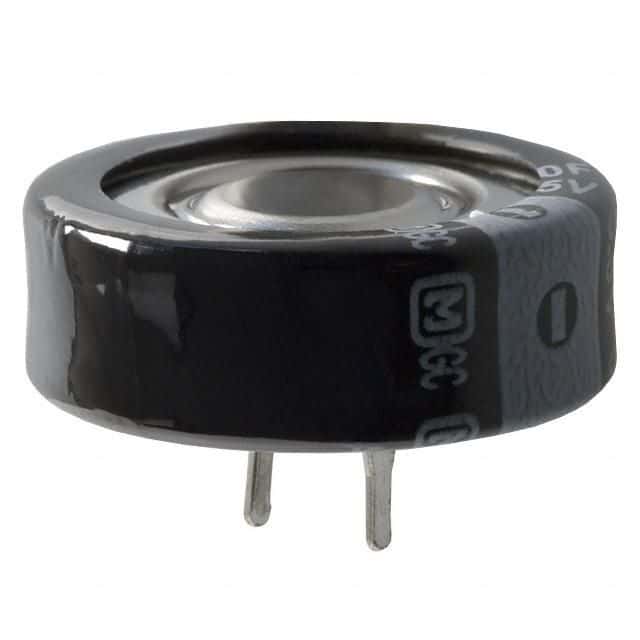

The Panasonic EEC-F5R5U155 is a 1.5F radial lead free through hole capacitor with a cylindrical construction and 30R equivalent series resistance. It has a height of 8mm and a length of 8mm, with a lead pitch of 5mm and a width of 21.5mm. The capacitor operates within a temperature range of -25°C to 70°C and is available in a tray packaging with 500 units per package.
Sign in to ask questions about the Panasonic EEC-F5R5U155 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEC-F5R5U155 technical specifications.
| Capacitance | 1.5F |
| Package/Case | Radial |
| Construction | Cylindrical |
| ESR (Equivalent Series Resistance) | 30R |
| Height | 8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 8mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | NF |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Width | 21.5mm |
| RoHS | Compliant |
