Supercapacitor with 470mF capacitance and 5.5V voltage rating. Features a radial, cylindrical construction with a 5mm lead pitch and 0.8mm lead diameter. Offers 30 Ohms ESR and operates within a -25°C to 70°C temperature range. This through-hole component is RoHS compliant and packaged in a tray.
PackageRadial
Voltage5.5V
Capacitance470mF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Panasonic EEC-F5R5U474 technical specifications.
General
| Body Diameter | 21.5mm |
| Capacitance | 470mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 8mm |
| Diameter | 21.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 30R |
| Height | 8mm |
| Height - Seated (Max) | 0.315inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 6mm |
| Lead Pitch | 5mm |
| Length | 8mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NF |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Width | 21.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-F5R5U474 Datasheet
Download the complete datasheet for Panasonic EEC-F5R5U474 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

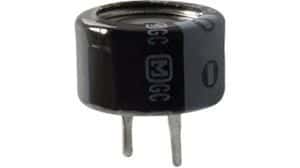

Product Images
