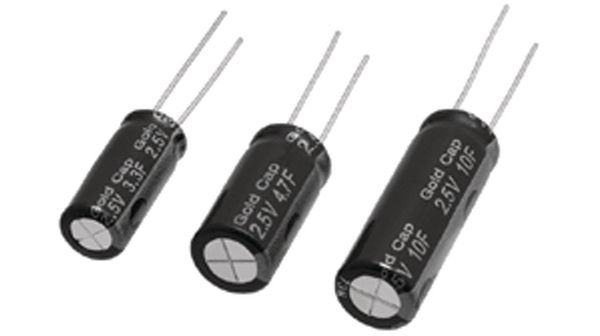

Electric double-layer capacitor with 10F capacitance and 2.5VDC voltage rating. Features a radial package with 5mm lead pitch, 0.6mm lead diameter, and 600µm lead length. Operating temperature range is -25°C to 70°C with 200mΩ ESR. Dimensions are 10mm diameter and 30mm height, suitable for through-hole PCB mounting. This RoHS compliant component is supplied in bulk packaging.
Sign in to ask questions about the Panasonic EEC-HZ0E106 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEC-HZ0E106 technical specifications.
| Capacitance | 10F |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 30mm |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 200mR |
| Height | 30mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 600um |
| Lead Pitch | 5mm |
| Length | 30mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HZ |
| Termination | Radial |
| Tolerance | 40% |
| Voltage | 2.5V |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
| RoHS | Compliant |
