Supercapacitor, stacked coin type, offering 4.7F capacitance with a 2.5V DC rated voltage. Features a radial leaded package with a 5mm lead pitch, 10mm body diameter, and 20mm depth. Operating temperature range from -25°C to +60°C, with an ESR of 300mR and 1000 hours of life. This through-hole mount component has a capacitance tolerance of +40%, -20%.
PackageRadial
Voltage2.5V
Capacitance4.7F
Voltage Rating2.5V
Quick Jump:
Technical Specifications
Panasonic EEC-HZ0E475 technical specifications.
General
| Body Diameter | 10mm |
| Capacitance | 4.7F |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 20mm |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Length | 0.6mm |
| Lead Pitch | 5mm |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | HZ |
| Termination | Radial |
| Tolerance | 40% |
| Voltage | 2.5V |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-HZ0E475 Datasheet
Download the complete datasheet for Panasonic EEC-HZ0E475 to view detailed technical specifications.
No datasheet is available for this part.

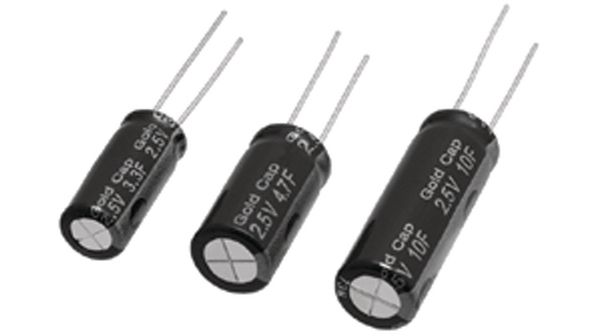

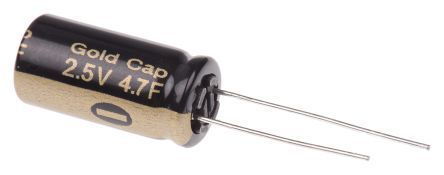

Product Images
