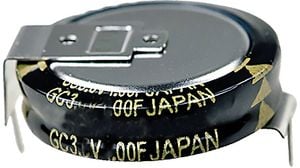

Radial cylindrical capacitor with 1F capacitance and 3.6V DC rated voltage. Features 20R ESR, 80% tolerance, and operates within a -25°C to 85°C temperature range. Through-hole mounting with a 20mm lead pitch and 1mm lead diameter. 21mm body diameter, 19mm depth, and 6.5mm height. Lead-free and RoHS compliant.
Sign in to ask questions about the Panasonic EEC-RG0V105H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEC-RG0V105H technical specifications.
| Body Diameter | 21mm |
| Capacitance | 1F |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 19mm |
| Diameter | 19mm |
| ESR (Equivalent Series Resistance) | 20R |
| Height | 6.5mm |
| Height - Seated (Max) | 0.256inch |
| Lead Diameter | 1mm |
| Lead Free | Lead Free |
| Lead Length | 5mm |
| Lead Pitch | 20mm |
| Length | 6mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Orientation | Horizontal |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | RG |
| Termination | Through Hole |
| Tolerance | 80% |
| Voltage | 3.6V |
| Voltage Rating | 3.6V |
| Voltage Rating (AC) | 3.6V |
| DC Rated Voltage | 3.6V |
| RoHS | Compliant |
