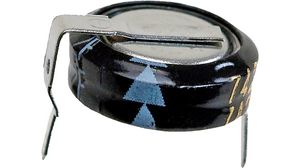

Supercapacitor, 100mF capacitance, 5.5V DC rated voltage, and 80% tolerance. Features a cylindrical, radial package with a 10mm lead pitch and 0.8mm lead diameter, suitable for through-hole PCB mounting. Operates within a temperature range of -25°C to 70°C with a 1000-hour life expectancy at rated conditions. Equivalent Series Resistance (ESR) is 75 Ohms.
Sign in to ask questions about the Panasonic EEC-S0HD104H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEC-S0HD104H technical specifications.
| Body Diameter | 10.5mm |
| Capacitance | 100mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 10.5mm |
| Diameter | 10.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 75R |
| Height | 5.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 3mm |
| Lead Pitch | 10mm |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | SD |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Width | 10.5mm |
| RoHS | Compliant |
