Radial stacked coin capacitor, 220mF capacitance, 5.5V DC rated voltage. Features 75 Ohm ESR, 1000-hour life at 70°C, and a -25°C to 70°C operating temperature range. Dimensions are 10.5mm diameter, 5mm depth, and 11.5mm height with a 5mm lead pitch. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Voltage500V
Capacitance220mF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Panasonic EEC-S0HD224V technical specifications.
General
| Body Diameter | 10.5mm |
| Capacitance | 220mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 5mm |
| Diameter | 10.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 75R |
| Height | 11.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 3mm |
| Lead Pitch | 5mm |
| Length | 11.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SD |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 500V |
| Voltage Rating | 5.5V |
| Voltage Rating (AC) | 5.5V |
| DC Rated Voltage | 5.5V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-S0HD224V Datasheet
Download the complete datasheet for Panasonic EEC-S0HD224V to view detailed technical specifications.
No datasheet is available for this part.

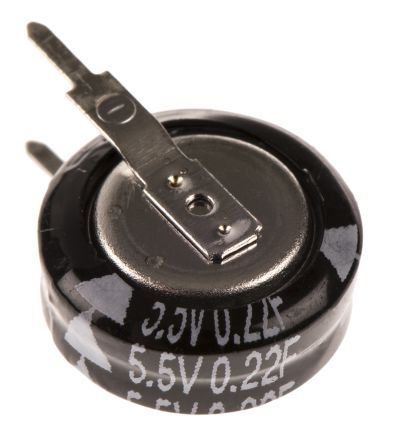

Product Images
