1.5 Farad, 5.5V radial capacitor with 30 Ohm ESR. Features a cylindrical, through-hole mounting package with a 20mm lead pitch and 1mm lead diameter. Operates from -25°C to 70°C with a 1000-hour life rating. RoHS compliant.
PackageRadial
Voltage5.5V
Capacitance1.5F
Voltage Rating5.5V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEC-S5R5H155 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEC-S5R5H155 technical specifications.
General
| Body Diameter | 19mm |
| Capacitance | 1.5F |
| Package/Case | Radial |
| Construction | Cylindrical |
| Depth | 19mm |
| Diameter | 19mm |
| ESR (Equivalent Series Resistance) | 30R |
| Height | 6.5mm |
| Lead Diameter | 1mm |
| Lead Length | 1mm |
| Lead Pitch | 20mm |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SG |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5.5V |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| Width | 19.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEC-S5R5H155 Datasheet
Download the complete datasheet for Panasonic EEC-S5R5H155 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

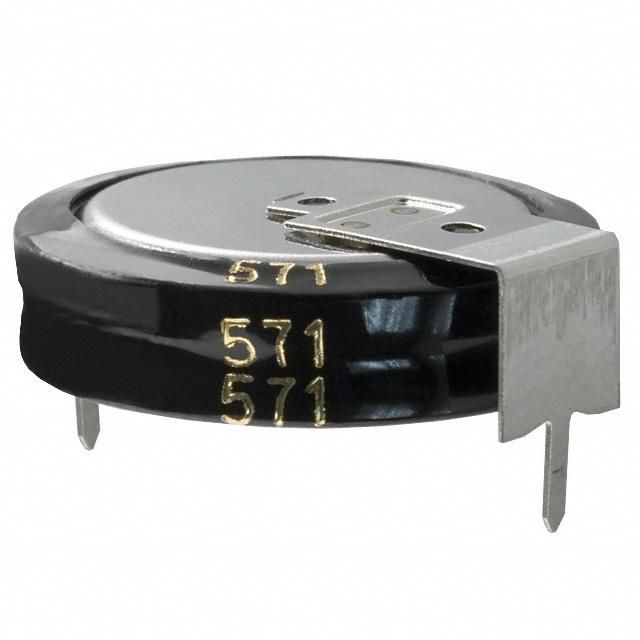

Product Images
