Surface mount aluminum electrolytic capacitor with 100µF capacitance and 20% tolerance. Features a 6.3V DC voltage rating, 71mA ripple current, and a maximum operating temperature of 85°C. This cylindrical component has a 6.3mm diameter, 5.4mm height, and 6.6mm width, with SMD/SMT terminations. Designed for PCB mounting, it offers 2000 hours of life and is RoHS compliant.
PackageRadial
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-0JA101SP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 26% |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Lead Length | 2.6mm |
| Lead Pitch | 2.2mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 71mA |
| Ripple Current (AC) | 71mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| Voltage Rating (AC) | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-0JA101SP Datasheet
Download the complete datasheet for Panasonic EEE-0JA101SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

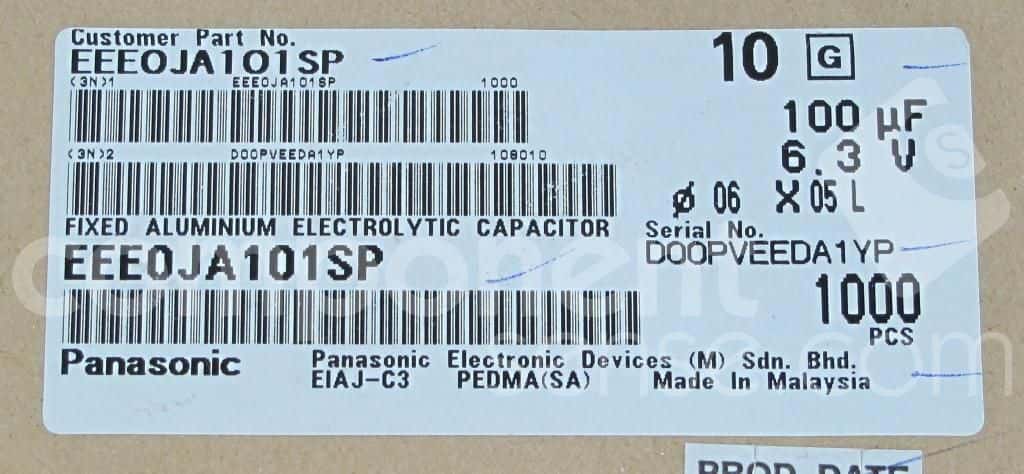

Product Images
