100µF, 10V aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 5.4mm height, and cylindrical construction for surface mount applications. Offers a ripple current of 70mA, leakage current of 3µA, and a dissipation factor of 0.26%. Rated for 2000 hours at 85°C, with an operating temperature range of -40°C to 85°C. Compliant with AEC-Q200 automotive standards and RoHS.
PackageRadial
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-1AA101AP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.26% |
| Features | General Purpose |
| Height | 7.8mm |
| Height - Seated (Max) | 0.213inch |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 70mA |
| RoHS Compliant | Yes |
| Series | VS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1AA101AP Datasheet
Download the complete datasheet for Panasonic EEE-1AA101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

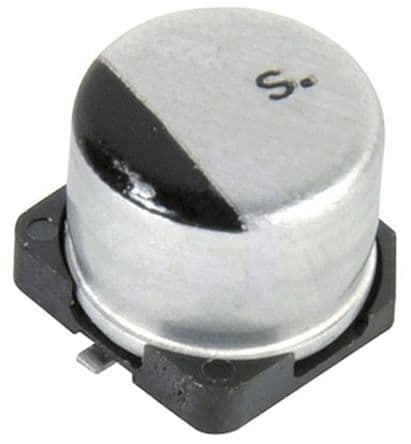

Product Images
