Aluminum electrolytic capacitor, 100µF capacitance, 10V DC rated voltage, 20% tolerance. Features a 6.3mm diameter, 5.4mm height, and 5.5mm length in a cylindrical construction. Rated for 70mA ripple current, 2000 hours life at 85°C, and operates from -40°C to 85°C. Surface mount termination with lead-free and RoHS compliance, suitable for automotive applications (AEC-Q200).
PackageRadial
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-1AA101SP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 26% |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 70mA |
| Ripple Current (AC) | 70mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1AA101SP Datasheet
Download the complete datasheet for Panasonic EEE-1AA101SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

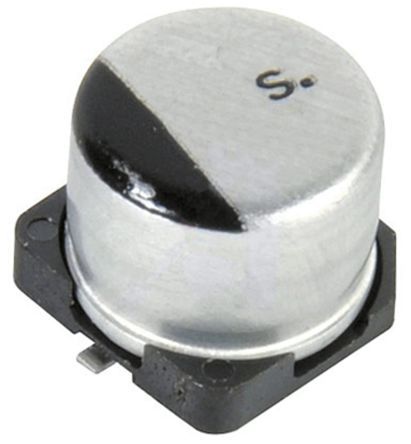

Product Images
