Surface mount aluminum electrolytic capacitor with 100µF capacitance and 10V DC voltage rating. Features 20% tolerance, 50mA ripple current, and a leakage current of 10µA. Operates from -40°C to 85°C with a rated life of 1000 hours. AEC-Q200 qualified and RoHS compliant, supplied in tape and reel packaging.
PackageRadial
Capacitance100uF
Voltage Rating10V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic EEE-1AA101WR technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 30% |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 10uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 50mA |
| Ripple Current (AC) | 50mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1AA101WR Datasheet
Download the complete datasheet for Panasonic EEE-1AA101WR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

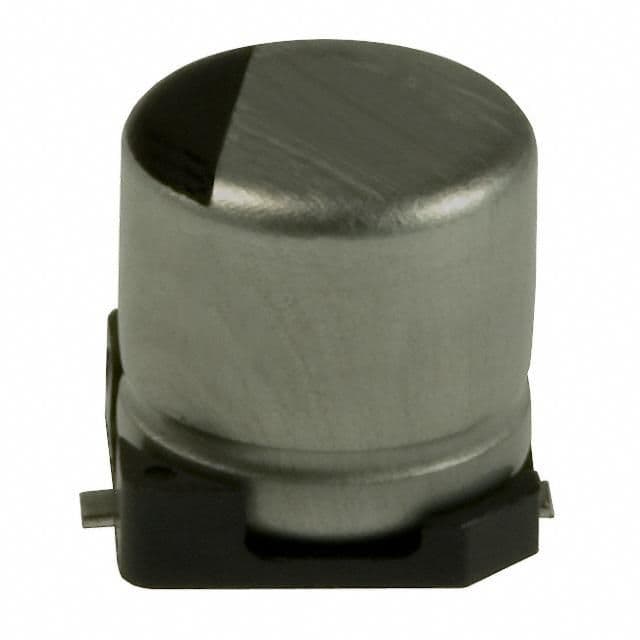

Product Images
