The EEE-1CA101AP is a 100uF aluminum electrolytic capacitor with a 16V voltage rating. It has a radial package with a cylindrical construction and measures 8mm in diameter and 6.2mm in height. The capacitor is surface mountable on a PCB and has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is rated for 2000 hours of life and has a leakage current of 3uA. The capacitor is RoHS compliant and meets AEC-Q200 ratings.
PackageRadial
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-1CA101AP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Height | 6.2mm |
| Leakage Current | 3uA |
| Length | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 200mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1CA101AP Datasheet
Download the complete datasheet for Panasonic EEE-1CA101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

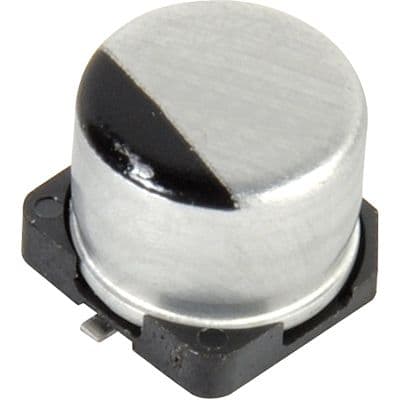

Product Images
