100µF, 16V radial aluminum electrolytic capacitor with 20% tolerance. Features a cylindrical construction, 8mm diameter, and 6.2mm height. Offers a dissipation factor of 0.2%, leakage current of 3µA, and ripple current of 200mA. Rated for 2000 hours at 85°C, with an operating temperature range of -40°C to 85°C. Surface mount termination, AEC-Q200 compliant, and RoHS compliant. Packaged in tape and reel.
PackageRadial
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-1CA101P technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.2% |
| Height | 6.2mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 200mA |
| Ripple Current (AC) | 200mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1CA101P Datasheet
Download the complete datasheet for Panasonic EEE-1CA101P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

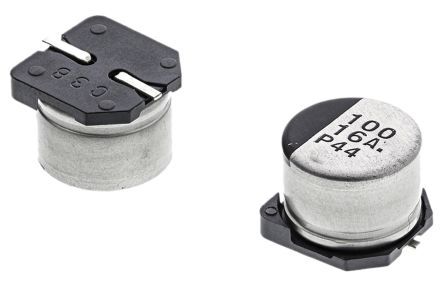

Product Images
