Surface mount aluminum electrolytic capacitor with 22µF capacitance and 20% tolerance. Features a 16V DC rated voltage and a maximum operating temperature of 85°C. This radial, cylindrical component offers a 1000-hour life and 28mA ripple current. It is RoHS compliant and AEC-Q200 rated, supplied in tape and reel packaging.
PackageRadial
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-1CA220WR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 28mA |
| Ripple Current (AC) | 28mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1CA220WR Datasheet
Download the complete datasheet for Panasonic EEE-1CA220WR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

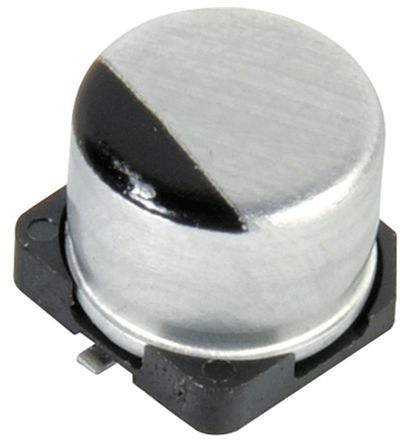

Product Images
