Aluminum electrolytic capacitor with 470µF capacitance and 16V voltage rating. Features 20% tolerance, 420mA ripple current, and a 2000-hour life at 85°C. Surface mountable with a cylindrical construction, measuring 10mm in diameter and 10.2mm in height. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-1CA471AP technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.2% |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 420mA |
| Ripple Current (AC) | 420mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1CA471AP Datasheet
Download the complete datasheet for Panasonic EEE-1CA471AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

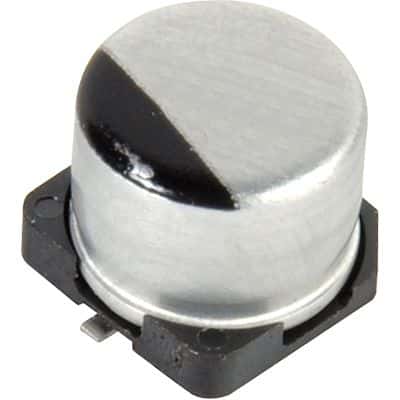

Product Images
