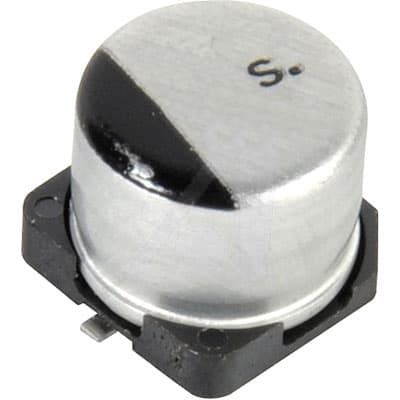

Aluminum electrolytic capacitor, 4.7µF capacitance with 20% tolerance, rated for 25V DC. Features a radial construction in a cylindrical package, measuring 5mm diameter and 6.5mm height. Designed for surface mount applications with a 21mA ripple current capability and 2000-hour life at 85°C. Compliant with AEC-Q200 and RoHS standards, offering low leakage current of 3µA.
PackageRadial
Capacitance4.7uF
Voltage Rating25V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic EEE-1EA4R7NR technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 0.28% |
| Height | 6.5mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.4mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 21mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 650um |
Compliance
| RoHS | Compliant |
