50V 22uF aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a cylindrical construction with a 6.5mm length, 8mm diameter, and 6.2mm height. Operates within a temperature range of -40°C to 85°C, offering a 2000-hour life at rated conditions. Includes a leakage current of 3uA and a ripple current rating of 120mA. This component is RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage50V
Capacitance22uF
Voltage Rating50V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEE-1HA220P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEE-1HA220P technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Height | 6.2mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 120mA |
| Ripple Current (AC) | 120mA |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-1HA220P Datasheet
Download the complete datasheet for Panasonic EEE-1HA220P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

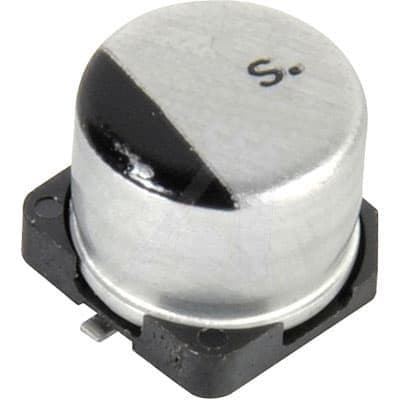

Product Images
